The Babel Buster SPX-GW is a Modbus bridge that transparently connects Modbus RTU devices to Modbus TCP and vice versa. All requests received from an RS-485 master are passed straight through to Ethernet servers. When configured to go the other way, all requests received from an Ethernet client are passed straight through to RS-485 slaves.

Babel Buster SPX-GW Functionality

The SPX-GW Modbus bridge can be configured to connect multiple Modbus RTU RS-485 devices to a single IP address on the TCP network. Conversely, the SPX-GW Modbus bridge can be configured to connect multiple Modbus TCP devices to a Modbus RTU RS-485 network.

Feature Highlights
• Encapsulates RTU packets in TCP packets
• Extracts RTU packets from TCP packets
• Can map multiple RTU devices to single TCP IP address
• Configured via internal web server
• FCC/CE Mark
• Software Included, No Drivers to Buy

Babel Buster SPX-GW Modbus Bridge

Babel Buster SPX-GW Modbus RTU to TCP Gateway

This model is now out of stock and out of production. We have a newer gateway that offers higher performance than the SPX-GW, and has all of the same capabilities as the SPX-GW plus some new features - at the same price. Recommended alternate: MX-61-GW.

 Read More...

Babel Buster SPX-GW is a transparent gateway for mapping Modbus RTU devices to Modbus TCP and vice versa. All requests received from an RS-485 Modbus RTU master are passed straight through to Modbus TCP servers. When configured to go the other way, all requests received from a Modbus TCP client are passed straight through to RS-485 Modbus RTU slaves. The SPX-GW is non-mapping in terms of mapping registers. The SPX-GW does not have any internal registers. It strictly maps RTU slave addresses to IP addresses.

The SPX-GW includes its own internal web server that provides a web based user interface for configuring the SPX-GW. Configuration is done using simple templates, and each web page has an online help section at the bottom.

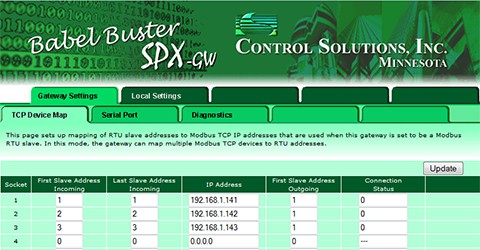

Screen shot from Babel Buster SPX-GW Modbus RTU to TCP Gateway

Click on the link below to view a demo copy of the entire Web UI in the SPX-GW.

 SPX-GW Demo Web

 Technical Specifications



SPX-GW Features

• Modbus RTU RS-485 Master or Slave
• Supports up to 255 RTU slave addresses
• Modbus TCP over Ethernet 10/100BaseT
• Supports up to 20 simultaneous TCP sockets
• Configure via web pages
• Flash file system with XML configuration files
• Online help
• Password protection for web log-on and ftp
• Field upgradeable firmware upload via ftp
• DHCP or static IP address
• Hardened EIA-485 transceiver for Modbus RTU
• Powered by 10-30VDC or 24VAC 50/60 Hz
• Power Consumption: 0.3A @ 24VDC
• Pluggable screw terminal block for power & RTU network
• Operating temperature -20°C to +75°C
• Humidity 5% to 90% non-condensing
• FCC Class A, CE Mark

 User Guide

 Documents and Links


• SPX Data Sheet
(standard SPX data sheet, only hardware specifications apply)

• SPX-GW User Guide
(same user guide covers BB2-6010-GW, SPX-GW, and SP-GW)

• SPX Jumper Setting Errata


• SPX Quick Start Guide


• User Guide in HTML Format (Download)
(same user guide covers BB2-6010-GW, SPX-GW, and SP-GW)


• Modbus Tutorial
Introduction to Modbus, including function codes, exception codes, register numbering.

 Videos - It's Easier than Reading!

SPX-GW Video Library

Watch these videos for an introduction to configuring the gateway. It's easier than reading!

Introduction to the Babel Buster SPX-GW Modbus Gateway

Same video covers BB2-6010-GW, SPX-GW, and SP-GW.
