IoT Gateways by Control Solutions

The term IoT Gateway is used to define a device that acts as a protocol converter and web client to collect data from local devices lacking advanced web technology and forward that data to "the cloud". The definition of what's in "the cloud" can vary greatly, but for purposes of Control Solutions IoT devices, the cloud is going to be an MQTT broker such as Amazon's IoT service, ThingsBoard, or a Mosquitto MQTT server that could be in "the cloud" or on a local machine.

Control Solutions has been putting Things on the Internet since about 2005. But interest in the Internet of Things has grown exponentially in recent years and cloud based support is both easy to access and affordable. Control Solutions is committed to enhancing its product line to give you rapid access to cloud based web services.

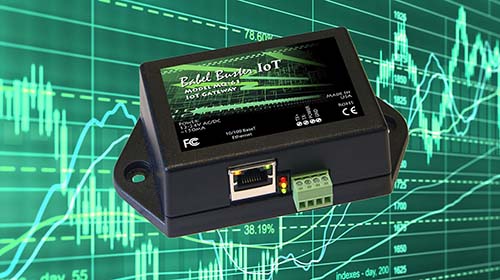

Control Solutions’ ValuPoint IoT Edge Servers or Babel Buster IoT Gateways turn your devices into Things on the Internet of Things. Gain instant access to a wide range of machine learning and AI capabilities, a wide range of data storage and analytics, and a variety of event handling and notification capabilities.

ValuPoint IoT Edge Servers for Cloud Applications

VP6-1460 ValuPoint IoT Edge Server for Modbus

VP6-1460 ValuPoint IoT Edge Server for Modbus

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• 12 Analog/universal inputs, software selectable types
• 2 Discrete outputs
• Modbus RTU Master or Slave
• Modbus TCP Client and Server
• Secure local email client
• Local data logging
• Real time scheduler
• Local user programming with Script Basic
• User HTML support for adding custom web pages
• Configure via secure web pages

Learn more...

Retail price: $1,179.00

Buy VP6-1460 Online Now!

VP6-1470 ValuPoint IoT Edge Server for BACnet

VP6-1470 ValuPoint IoT Edge Server for BACnet

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• 12 Analog/universal inputs, software selectable types
• 2 Discrete outputs
• BACnet IP to MS/TP Router and Gateway
• BACnet Client and Server
• Secure local email client
• Local data logging
• Real time scheduler
• User HTML support for adding custom web pages
• Configure via secure web pages<

Learn more...

Retail price: $1,179.00

Buy VP6-1470 Online Now!

ValuPoint IoT Edge Servers give your devices access to MQTT brokers with graphical interactive dashboards such as ThingsBoard illustrated here. Interact with your remote devices from your PC or smart phone.

There are many things you can do with your data once it arrives at the MQTT broker (server). With Amazon's AWS IoT services, you have access to database resources, analytics, and many other capabilities including QuickSight illustrated above.

Babel Buster IoT Gateways for Cloud Applications

MQ-61 Modbus to MQTT Gateway

MQ-61 Modbus to MQTT Gateway

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• Powerful rule based Publish template
• Modbus RTU RS-485 Master or Slave
• Modbus TCP Client and Server
• Local user programming with Script Basic
• Configure via secure web pages

Learn more...

Retail price: $549.00

Buy MQ-61 Online Now!

MQ-73 BACnet to MQTT Gateway

MQ-73 BACnet to MQTT Gateway

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe<
• Powerful rule based Publish template
• BACnet IP to MS/TP Router
• BACnet Client and Server
• Configure via secure web pages

Learn more...

Retail price: $549.00

Buy MQ-73 Online Now!

BACnet or Modbus to MQTT Gateway

The Babel Buster IoT Gateway is used to turn any Modbus or BACnet device into a "thing" for the Internet of Things. The MQTT broker only knows that we have a "thing" of some sort, and the MQTT protocol used by the Internet of Things knows how to exchange messages containing attributes which have values. The IoT Gateway maps Modbus registers or BACnet objects to attributes, and the register or object content is treated as the attribute's value. The mapping also includes mapping object names to attribute names. Each register or object becomes a data point that is treated as an attribute by MQTT.

The Thing Points page is a template that lets you map registers or objects to "things", and includes rules and qualifiers to let you decide the conditions under which the point will be published to the cloud.

BB3-6101-MQ Modbus to MQTT Gateway

BB3-6101-MQ Modbus to MQTT Gateway

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• Powerful rule based Publish template
• Modbus RTU Master or Slave
• Modbus TCP Client and Server
• Local user programming with Script Basic
• Configure via secure web pages

Learn more...

Retail price: $739.00

Buy BB3-6101-MQ Online Now!

BB3-7301-MQ BACnet to MQTT Gateway

BB3-7301-MQ BACnet to MQTT Gateway

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• Powerful rule based Publish template
• BACnet IP to MS/TP Router
• BACnet Client and Server
• Configure via secure web pages

Learn more...

Retail price: $739.00

Buy BB3-7301-MQ Online Now!
