Control Solutions' ValuPoint IoT Edge Servers and Babel Buster IoT Gateways include stand-alone data logging capability. The IoT Gateway functionality will query your Modbus or BACnet devices, log data to a CSV file, and periodically email that file to you as an email attachment. The ValuPoint devices will continuously monitor locally connected sensors and log those values to your CSV file per your logging criteria.

Your Modbus data logger can collect data from your PLC or any other Modbus device using either Modbus TCP or Modbus RTU.

Your BACnet data logger can collect data from any building management device using either BACnet IP or BACnet MS/TP.


ValuPoint IoT Edge Servers for Modbus Data Logging or BACnet Data Logging

VP6-1460 ValuPoint IoT Edge Server for Modbus

VP6-1460 ValuPoint IoT Edge Server for Modbus

VP6-1460 ValuPoint IoT Edge Server for Modbus

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• 12 Analog/universal inputs, software selectable types
• 2 Discrete outputs
• Modbus RTU Master or Slave
• Modbus TCP Client and Server
• Secure local email client
• Local data logging
• Real time scheduler
• Local user programming with Script Basic
• User HTML support for adding custom web pages
• Configure via secure web pages

Learn more...

Retail price: $1,179.00

 Sign Up for Wholesale

 Buy VP6-1460 Online Now!

VP6-1470 ValuPoint IoT Edge Server for BACnet

VP6-1470 ValuPoint IoT Edge Server for BACnet

VP6-1470 ValuPoint IoT Edge Server for BACnet

• MQTT Client supports AWS IoT Core, Mosquitto MQTT, ThingsBoard
• Simple template based setup of MQTT Publish and Subscribe
• 12 Analog/universal inputs, software selectable types
• 2 Discrete outputs
• BACnet IP to MS/TP Router and Gateway
• BACnet Client and Server
• Secure local email client
• Local data logging
• Real time scheduler
• User HTML support for adding custom web pages
• Configure via secure web pages<

Learn more...

Retail price: $1,179.00

 Sign Up for Wholesale

 Buy VP6-1470 Online Now!

ValuPoint IoT Edge Servers and Babel Buster IoT Gateways as a Data Loggers

There are two ways of going about data logging with Control Solutions IoT Devices. One is via the cloud. The other is to log data to a local CSV file and have that file emailed to you periodically.

Selection of data points is pretty easy. Every Modbus register or BACnet object shows up on the list. Simply check off those registers or objects you want to log.

Once you have selected which registers or objects to record, a simple template is where you decide how often to record them, and when to send the log file to yourself via email.


Babel Buster IoT Gateways for Modbus Data Logging or BACnet Data Logging

MQ-61 Modbus Data Logger

MQ-61 Modbus IoT Gateway

MQ-61 Modbus IoT Gateway

• Local data logging for stand-alone remote monitoring
• Secure email client (gmail compatible)
• Automatically sends CSV data file as email attachment
• Simple template setup of logged parameters
• Modbus RTU RS-485 Master or Slave
• Modbus TCP Client and Server

Learn more...

Retail price: $549.00

 Sign Up for Wholesale

 Buy MQ-61 Online Now!

MQ-73 BACnet Data Logger

MQ-73 BACnet IoT Gateway

MQ-73 BACnet IoT Gateway

• Local data logging for stand-alone remote monitoring
• Secure email client (gmail compatible)
• Automatically sends CSV data file as email attachment
• Simple template setup of logged parameters
• BACnet IP to MS/TP Router
• BACnet Client and Server

Learn more...

Retail price: $549.00

 Sign Up for Wholesale

 Buy MQ-73 Online Now!

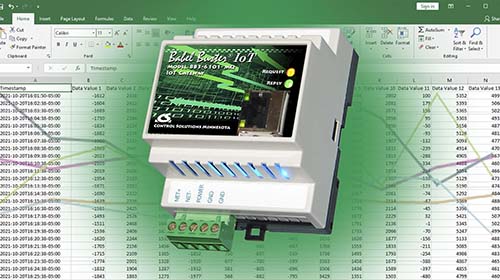

Data logged locally to CSV files is automatically timestamped. You may open your data file with any standard spread sheet program or any other tool that can read a simple CSV file. There will be one column of data per each point you selected for logging.

BB3-6101-MQ Modbus Data Logger

BB3-6101-MQ Modbus IoT Gateway

BB3-6101-MQ Modbus IoT Gateway

• Local data logging for stand-alone remote monitoring
• Secure email client (gmail compatible)
• Automatically sends CSV data file as email attachment
• Simple template setup of logged parameters
• Modbus RTU Master or Slave
• Modbus TCP Client and Server

Learn more...

Retail price: $739.00

 Sign Up for Wholesale

 Buy BB3-6101-MQ Online Now!

BB3-7301-MQ BACnet Data Logger

BB3-7301-MQ BACnet IoT Gateway

BB3-7301-MQ BACnet IoT Gateway

• Local data logging for stand-alone remote monitoring
• Secure email client (gmail compatible)
• Automatically sends CSV data file as email attachment
• Simple template setup of logged parameters
• BACnet IP to MS/TP Router
• BACnet Client and Server

Learn more...

Retail price: $739.00

 Sign Up for Wholesale

 Buy BB3-7301-MQ Online Now!

You can log data locally, to the cloud, or both. There are many things you can do with your data once it arrives at the MQTT broker (server). With Amazon's AWS IoT services, you have access to database resources, analytics, and many other capabilities including QuickSight illustrated above.


We can help you turn the IoT Gateway into a wireless remote monitoring system with the addition of a cellular router. It is secure, self-managed, and low-cost.
