The Babel Buster BB3-7302-V3 BACnet Router routes BACnet messages between BACnet IP and BACnet MS/TP networks. The BB3-7302-V3 BACnet Router can be a learning router or configured router, and includes BBMD support. The BB3-7302-V3 BACnet Router also provides slave proxy capability to answer to Who-Is messages on behalf of devices that do not support dynamic binding.

The Babel Buster BB3-7302-V3 BACnet Router can also operate as a BACnet gateway, reading and writing other BACnet devices and retaining a copy of object values in its own set of BACnet objects. The BB3-7302-V3 also provides an SNMPv3 server for additional gateway flexibility. The BB3-7302-V3 can be used to connect BACnet devices to an SNMPv3 network.

BB3-7302-V3 BACnet Router plus SNMP Gateway Functionality

The BB3-7302-V3 is an upgrade alternate for BB2-7030 offering higher performance at a lower cost. Routing efficiency is improved and gateway capacity increased. The BB3-7302-V3 also provides a secure (https) web user interface.

Feature Highlights
• BACnet Router, IP to MS/TP
• Configured or learning router
• BBMD support for WAN connectivity
• Slave proxy for static address binding support
• BACnet Client/Server gateway for mapping BACnet objects
• Up to 5,000 BACnet Objects
• BACnet Input, Value, Output objects for Analog, Binary, Multistate
• SNMP Server (aka Agent)
• Up to 1,000 BACnet Objects mapped as MIB variables
• Connect BACnet IP or MS/TP Devices to an SNMPv3 Network
• SNMP trap sender with user programmable threshold rules
• FCC, CE Mark, UL 916 Listed, BTL Certified
• Software Included, No Drivers to Buy

Babel Buster BB3-7101 BACnet IP to SNMPv3 Gateway

Babel Buster BB3-7302-V3 BACnet Router plus SNMP Gateway

Order code: BB3-7302-V3
Retail price: $739.00

 Buy BB3-7302-V3 Online Now!

 Save Even More
Sign Up for Wholesale



Control Solutions’ Babel Buster BB3-7302-V3 is a BACnet router, slave proxy, and client/server gateway that allows remapping objects from multiple slaves into one master. You can use the BB3-7302-V3 as just a router, just a client/server, or both at the same time. The BB3-7302-V3 also includes BBMD support. The BB3-7302-V3 is a performance upgrade of Control Solutions’ original BB2-7030 BACnet router.

The BB3-7302-V3 as a BACnet Router will route IP to MS/TP and vice versa via its local ports, and supports full router capability for multi-hop internetworks including via NAT WAN routers. Routing is simple to set up. Routing can be used without any other gateway features enabled. Routing can be configured or automatically learned.

The BB3-7302-V3 as a BACnet Client/Server Gateway will poll BACnet IP and/or BACnet MS/TP slaves or servers, and retain copies of selected object properties. Upstream clients may then query the BB3-7302-V3 to receive data originating from multiple devices.

The BB3-7302-V3 is an SNMP Agent that will respond to SNMP v1, v2c, or v3 requests. Local BACnet objects can be assigned to either of the branches of the local MIB for remote access by SNMP Managers. The local data may be accessed as scaled integer or 32-bit floating point (RFC 6340). An SNMP Get to the BB3-7302-V3 will read local objects and an SNMP Set will write the local objects. If local objects are mapped via the BACnet client to write to other BACnet devices, then SNMP Set will result in writing to a BACnet device.

The BB3-7302-V3 can send v1, v2c, or v3 traps or notifications based on threshold rules created via templates in the BB3-7302-V3’s web UI. When data in the local objects meets the rule criteria, the notification will be sent. Notifications can be triggered by reading other BACnet devices or by object values written to the BB3-7302-V3 by other BACnet devices.

The BB3-7302-V3 includes its own internal web server that provides a web based user interface for configuring the BB3-7302-V3. Configuration is done using simple templates, and each web page has an online help section at the bottom.

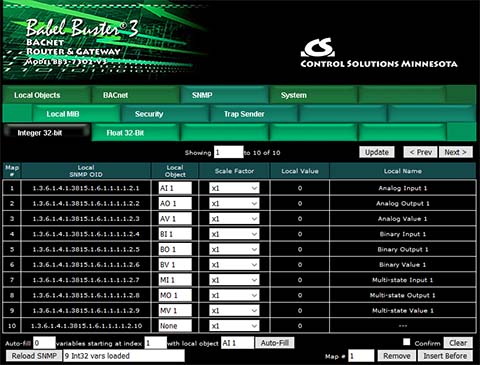

Screen shot from BB3-7302-V3 BACnet Router plus SNMP Gateway

Click on the link below to view a demo copy of the entire Web UI in the BB3-7302-V3.

 BB3-7302-V3 Demo Web




BB3-7302-V3 Features

• BACnet IP to MS/TP Router
• Configured or learning, I-Am route learning, I-Am-Router route learning
• Slave proxy to support MS/TP slave-only devices
• Client/Server gateway for remapping BACnet objects
• Direct import of CSV files for faster point mapping
• Read/Write any standard BACnet objects as a Gateway
    • Up to 5,000 objects
    • Analog, Binary, Multi-State object types
    • Input, Output, Value objects
• Commandable BACnet objects implement priority array
• BBMD, COV support
• SNMP v1, v2c, v3 Get/Set access to all data points
• SNMP v1, v2c, v3 trap generation, user programmable criteria
• MD5/DES support for Get/Set, encrypted traps not supported
• Up to 1,000 MIB variables
• Map any BACnet object to a MIB variable
• Auto-Build MIB on command
• Hardened EIA-485 transceiver for BACnet MS/TP
• 10/100BaseT Ethernet for BACnet IP and SNMP
• Configure via secure web pages with password protection
    • TLS 1.2
    • RSA-1024/SHA-256 self-generated certificates
    • Supports externally generated certificates
• Flash file system with XML configuration files
• Field upgradeable firmware
• Includes “10X” file capacity
• Powered by 10-30VDC or 24VAC 50/60 Hz
• Power Consumption: 0.1A @ 24VDC
• DIN rail mounting, 100mm H x 70mm W x 60mm D
• Pluggable screw terminal block for power & RTU network
• Operating temperature -40°C to +85°C
• Humidity 5% to 90% non-condensing
• FCC Class A, CE Mark
• BTL Certified
• Listed to UL 916 and (Canadian) C22.2 No. 205-M1983


Maximum Object Counts and System Capacities for BB3-7302-V3

• BB3-7302-V3 Object Pool allows up to 5,000 BACnet objects. The object pool may be allocated among the following object types, with a minimum of 1 per object type: Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, Binary Value, Multi-state Input, Multi-state Output, Multi-state Value.

• Maximum 1024 states for Multi-state objects with state text, actual number of objects/states supported varies by resource usage per object.

• BB3-7302-V3 allows user allocation of memory resources. Memory capacity will not support maximum counts of everything possible, but maximum count limits are set high so that you can allocate resources where you need them.

• Maximum BACnet object count 5000
• Maximum BACnet device count 200
• BACnet Client read map count 5000
• BACnet Client write map count 5000

• Maximum MIB Size: 1000 Variables
