The Babel Buster BB2-6010-GW is a Modbus transparent pass-through gateway that transparently connects Modbus RTU devices to Modbus TCP and vice versa. All requests received from an RS-485 master are passed straight through to Ethernet servers. When configured to go the other way, all requests received from an Ethernet client are passed straight through to RS-485 slaves.

BB2-6010-GW Functionality

The BB2-6010-GW Modbus transparent pass-through gateway can be configured to connect multiple Modbus RTU RS-485 devices to a single IP address on the TCP network. Conversely, the BB2-6010-GW can be configured to connect multiple Modbus TCP devices to a Modbus RTU RS-485 network.

Feature Highlights
• Encapsulates RTU packets in TCP packets
• Extracts RTU packets from TCP packets
• Can map multiple RTU devices to single TCP IP address
• Configured via internal web server
• FCC/CE Mark, UL 916 Listed
• Software Included, No Drivers to Buy

Babel Buster BB2-6010-GW Modbus Transparent Pass-Through Gateway

Babel Buster BB2-6010-GW Modbus to SNMP Gateway

BB2-6010-GW is no longer available, out of production. We have a newer gateway that offers higher performance than the BB2-6010-GW, and has all of the same capabilities as the BB2-6010-GW plus some new features - at a lower price. Recommended alternate: BB3-6101-GW.

 Read More...

Babel Buster BB2-6010-GW is a transparent gateway for mapping Modbus RTU devices to Modbus TCP and vice versa. All requests received from an RS-485 Modbus RTU master are passed straight through to Modbus TCP servers. When configured to go the other way, all requests received from a Modbus TCP client are passed straight through to RS-485 Modbus RTU slaves. The BB2-6010-GW is non-mapping in terms of mapping registers. The BB2-6010-GW does not have any internal registers. It strictly maps RTU slave addresses to IP addresses.

The BB2-6010-GW includes its own internal web server that provides a web based user interface for configuring the BB2-6010-GW. Configuration is done using simple templates, and each web page has an online help section at the bottom.

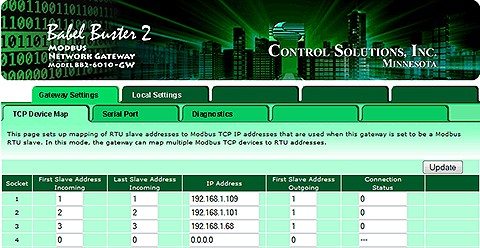

Screen shot from BB2-6010-GW Modbus TCP to RTU Gateway

Click on the link below to view a demo copy of the entire Web UI in the BB2-6010-GW.

 BB2-6010-GW Demo Web

 Technical Specifications



BB2-6010-GW Features

• Modbus RTU RS-485 Master or Slave
• Supports up to 255 RTU slave addresses
• Modbus TCP over Ethernet 10/100BaseT
• Supports up to 20 simultaneous TCP sockets
• Configure via web pages
• Flash file system with XML configuration files
• Online help
• Password protection for web log-on and ftp
• Field upgradeable firmware upload via ftp
• DHCP or static IP address
• Hardened EIA-485 transceiver for Modbus RTU
• Powered by 10-30VDC or 12-24VAC 50/60 Hz
• Power Consumption: 0.3A @ 24VDC
• DIN rail mounting, 100mm H x 70mm W x 60mm D
• Pluggable screw terminal block for power & RTU network
• Operating temperature -40°C to +85°C
• Humidity 5% to 90% non-condensing
• FCC Class A, CE Mark
• Listed to UL 916 and (Canadian) C22.2 No. 205-M1983

 User Guide

 Documents and Links


• BB2-6010 Data Sheet
(standard BB2-6010 data sheet, only hardware specifications apply)

• BB2-6010-GW User Guide


• BB2-6010 Quick Start Guide

• BB2-6010 Wiring Drawing


• BB2-6010 Mechanical DXF

• User Guide in HTML Format (Download)


• Modbus Tutorial
Introduction to Modbus, including function codes, exception codes, register numbering.

 Videos - It's Easier than Reading!

BB2-6010-GW Video Library

Watch these videos for an introduction to configuring the gateway. It's easier than reading!

Introduction to the BB2-6010-GW Modbus Gateway
