i.CanDoIt® Guided Tour (p.15)
BACnet Port Configuration

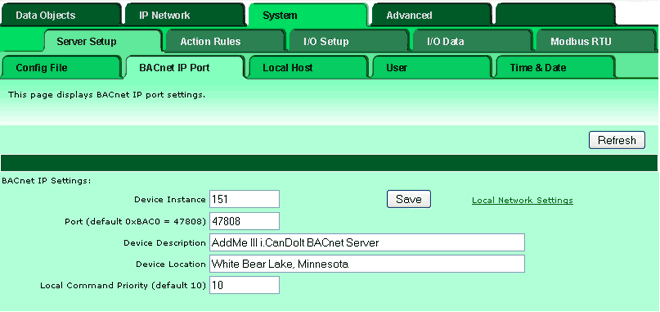

The Local Host settings such as IP address of this device are set on the Local Host page. Additional settings are required for BACnet IP. Those settings are shown on this page. Device description is returned as a BACnet device property. Port number and device instance are used to access this device along with IP address.
