The Babel Buster SP Custom proprietary protocol to BACnet IP gateway lets you create your own gateway. Designed to interface devices with a proprietary RS-232 or RS-485 ASCII protocol, the proprietary part of the protocol is user programmed using the built-in Script Basic. Simple function calls are provided to move data between your Basic program and BACnet IP objects. The BACnet IP side of this gateway is the same as our other BACnet IP gateways, and is configured via the internal web server.

Babel Buster SP Custom Functionality

Feature Highlights
• User programmable with built-in Basic compiler
• Read/write BACnet object data from Basic program
• Read/write ASCII serial data from Basic program
• Read/write data via UDP or TCP socket from Basic program
• BACnet IP server with COV support
• 300 Input objects each of types AI, BI, MSI
• 100 Output objects each of types AO, BO, MSO
• 100 Value objects each of types AV, BV, MSV
• Bidirectional communication between BACnet and device
• Software Included, No Drivers to Buy

Babel Buster SP Custom BACnet IP to Proprietary Protocol Gateway

Babel Buster SP Custom Gateway

Order code: BBSPCU
This model has been discontinued.
Recommended replacement: BB3-7101-SP

 Read More...

Babel Buster SP Custom is the ultimate "universal" BACnet IP gateway. You write your own Script Basic program to communicate via RS-232 or RS-485 serial, or via TCP socket connection, to your non-BACnet device. Translate your data as needed, then place that data into BACnet objects accessible to any BACnet IP Client.

• User programmable with built-in Basic compiler
• Read/write BACnet object data from Basic program
• Read/write ASCII serial data from Basic program
• Read/write data via UDP or TCP socket from Basic program

The SP Custom includes its own internal web server that provides a web based user interface for configuring the SP Custom. Configuration is done using simple templates, and each web page has an online help section at the bottom.

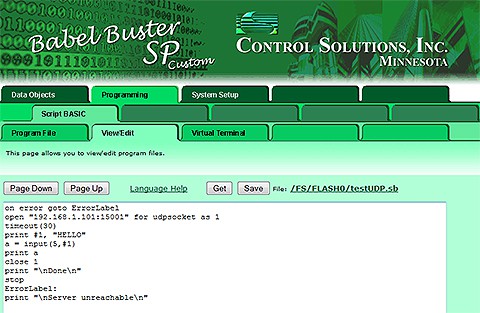

Screen shot from Babel Buster SP Custom BACnet IP to proprietary ASCII serial protocol gateway

Click on any of the links below to view a demo copy of the entire Web UI in the BB2-7010.

 SP Custom Demo Web

 Technical Specifications



Babel Buster SP Custom Features

• BACnet IP server with COV support
• 300 Input objects each of types AI, BI, MSI
• 100 Output objects each of types AO, BO, MSO
• 100 Value objects each of types AV, BV, MSV
• Bidirectional communication between BACnet and device
• Commandable BACnet objects implement priority array
• 10/100BaseT Ethernet for BACnet IP
• Configure via web pages
• Flash file system with XML configuration files
• Online help
• Online wiring and DIP switch diagrams
• DIP switch selectable RS-232 or RS-485 two or four wire with optional termination
• Password protection for web log-on, ftp and telnet log-on
• Field upgradeable firmware upload via ftp
• Powered by 9 to 30VDC @ 0.37A to 0.11A
• 120VAC power supply included (12VDC output)
• FCC Class A, CE Mark
• Operating temperature -40°C to +85°C;
• Humidity 5% to 90% non-condensing


 Documents and Links


• SP Data Sheet
(Standard SP data sheet, only hardware specifications apply)


• Script Basic Compiled Help


• SP Quick Start Guide

• SP Hardware Guide

• SP Mechanical Drawing


• BACnet Tutorial
Introduction to BACnet
