The Babel Buster SP-GW is a Modbus gateway that transparently connects a Modbus RTU device to Modbus TCP and vice versa. All requests received from an RTU master are passed straight through to Modbus TCP servers. When configured to go the other way, all requests received from a Modbus TCP client are passed straight through to the RTU slave.

Babel Buster SP-GW Functionality

The SP-GW Modbus bridge can be configured to connect a single RS-232 device, or multiple Modbus RTU RS-485 devices, to a single IP address on the TCP network. Conversely, the SP-GW Modbus bridge can be configured to connect multiple Modbus TCP devices to a Modbus RTU RS-232 port.

Feature Highlights
•Encapsulates RTU packets in TCP packets
•Extracts RTU packets from TCP packets
•Can map multiple RTU devices to single TCP IP address
•Configured via internal web server
•FCC/CE Mark
• Software Included, No Drivers to Buy

Babel Buster SP-GW Modbus RS-232 Bridge

Babel Buster SP-GW Modbus RTU to TCP Gateway

Order code: BBSPGW
This model has been discontinued.
Recommended replacement: BB3-6101-GW



 Read More...

Babel Buster SP-GW is a transparent gateway for mapping Modbus RTU devices to Modbus TCP and vice versa. All requests received from an RS-485 Modbus RTU master are passed straight through to Modbus TCP servers. When configured to go the other way, all requests received from a Modbus TCP client are passed straight through to RS-485 Modbus RTU slaves. The SP-GW is non-mapping in terms of mapping registers. The SP-GW does not have any internal registers. It strictly maps RTU slave addresses to IP addresses.

The SP-GW includes its own internal web server that provides a web based user interface for configuring the SP-GW. Configuration is done using simple templates, and each web page has an online help section at the bottom.

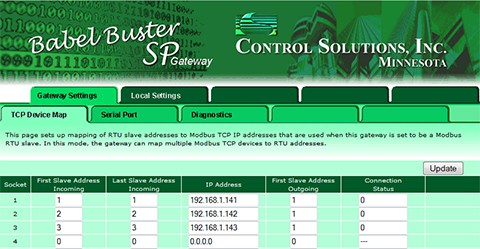

Screen shot from Babel Buster SP-GW Modbus RTU to TCP Gateway

Click on the link below to view a demo copy of the entire Web UI in the SP-GW.

 SP-GW Demo Web

 Technical Specifications



SP-GW Features

• Modbus RTU RS-485 Master or Slave
• Supports up to 255 RTU slave addresses
• Modbus TCP over Ethernet 10/100BaseT
• Supports up to 20 simultaneous TCP sockets
• Configure via web pages
• Flash file system with XML configuration files
• Online help
• Password protection for web log-on and ftp
• Field upgradeable firmware upload via ftp
• DHCP or static IP address
• Hardened EIA-485 transceiver for Modbus RTU
• Powered by 10-30VDC or 24VAC 50/60 Hz
• Power Consumption: 0.3A @ 24VDC
• Pluggable screw terminal block for power & RTU network
• Operating temperature -40°C to +85°C
• Humidity 5% to 90% non-condensing
• FCC Class A, CE Mark

 User Guide

 Documents and Links


• SP Data Sheet
(standard SP data sheet, only hardware specifications apply)

• SP-GW User Guide
(same user guide covers BB2-6010-GW, SPX-GW, and SP-GW)


• SP Quick Start Guide

• SP Hardware Guide

• SP Mechanical Drawing


• User Guide in HTML Format (Download)
(same user guide covers BB2-6010-GW, SPX-GW, and SP-GW)


• Modbus Tutorial
Introduction to Modbus, including function codes, exception codes, register numbering.

 Videos - It's Easier than Reading!

SP-GW Video Library

Watch these videos for an introduction to configuring the gateway. It's easier than reading!

Introduction to the Babel Buster SP-GW Modbus Gateway

Same video covers BB2-6010-GW, SPX-GW, and SP-GW.
